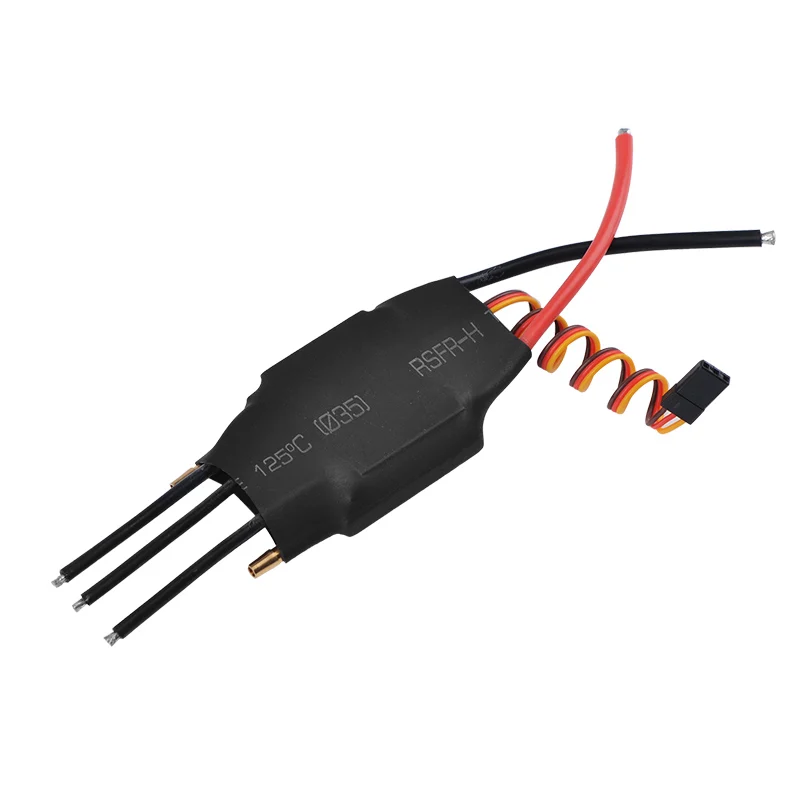

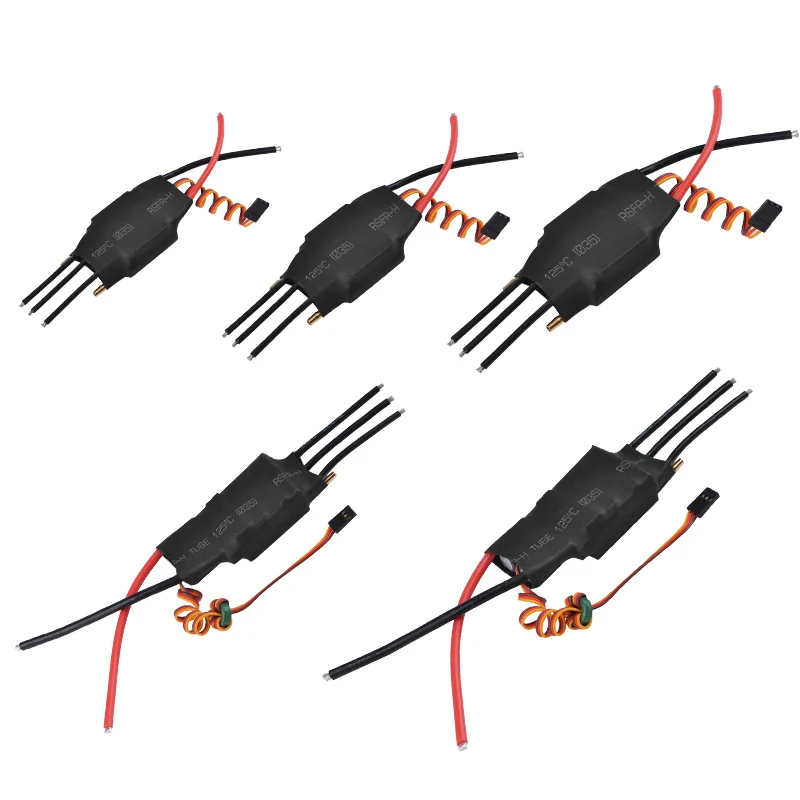

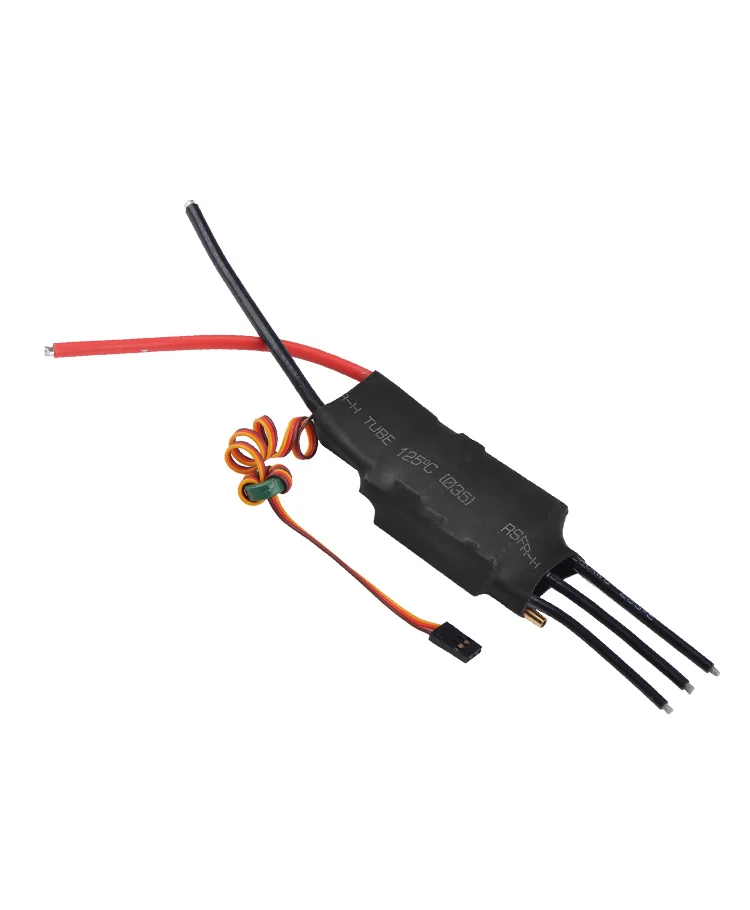

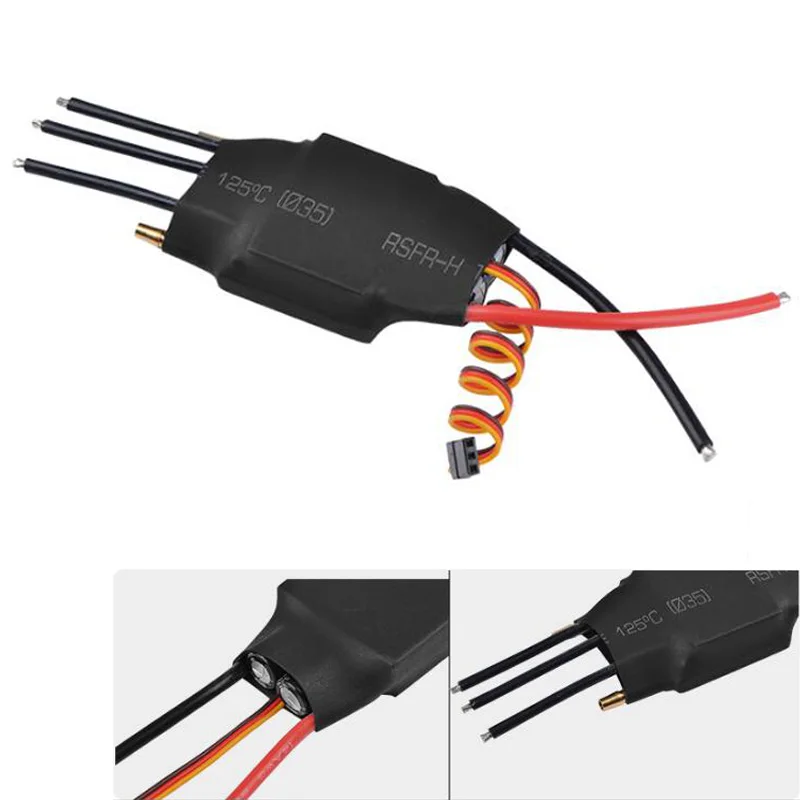

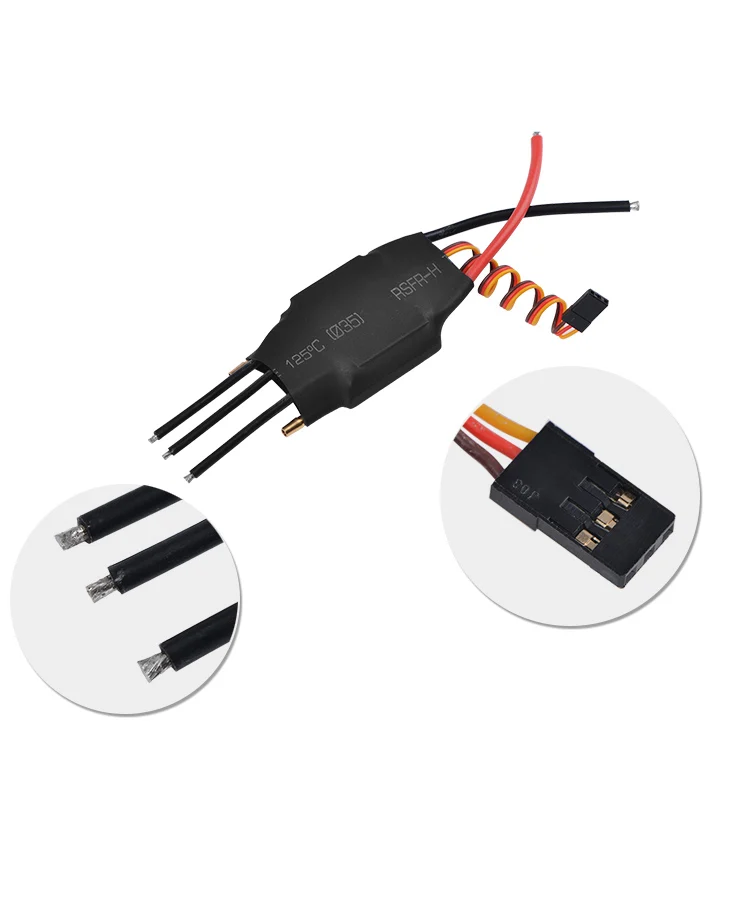

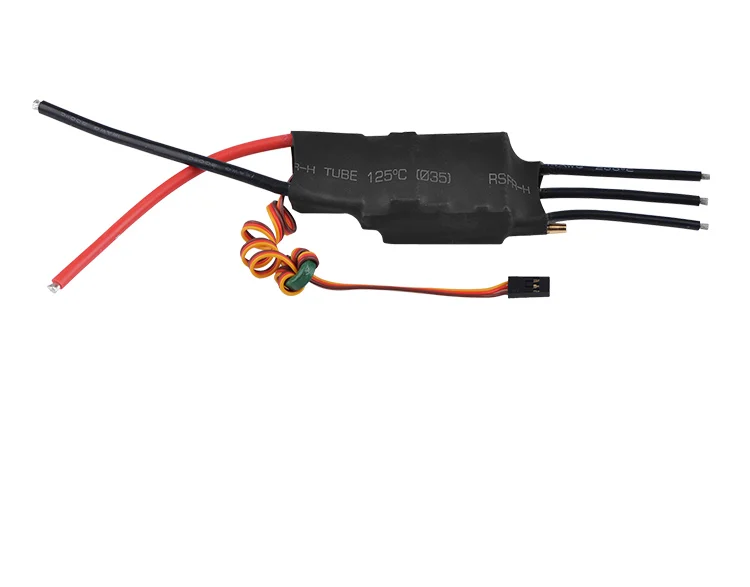

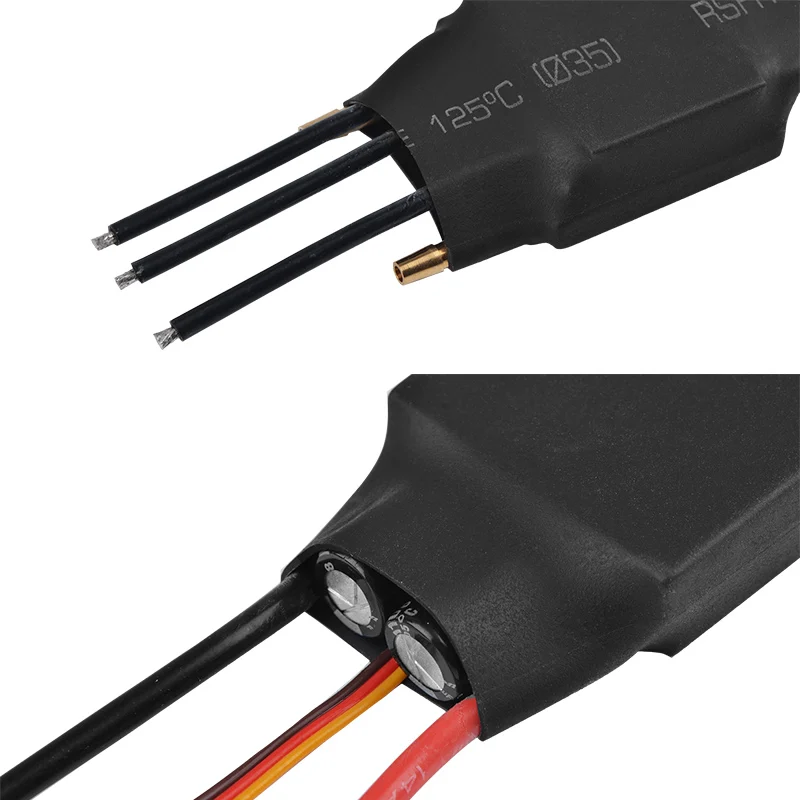

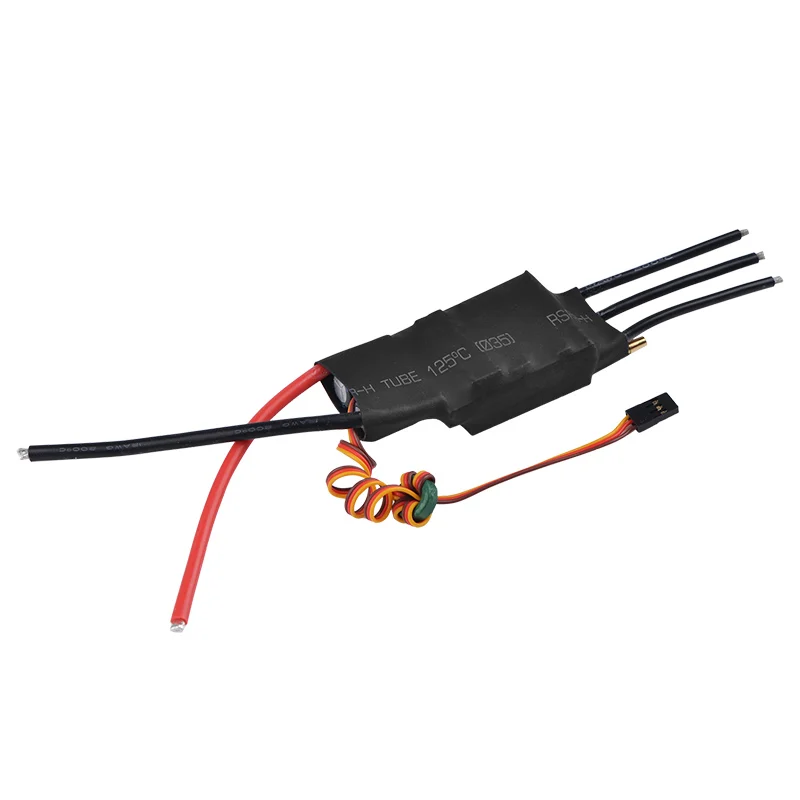

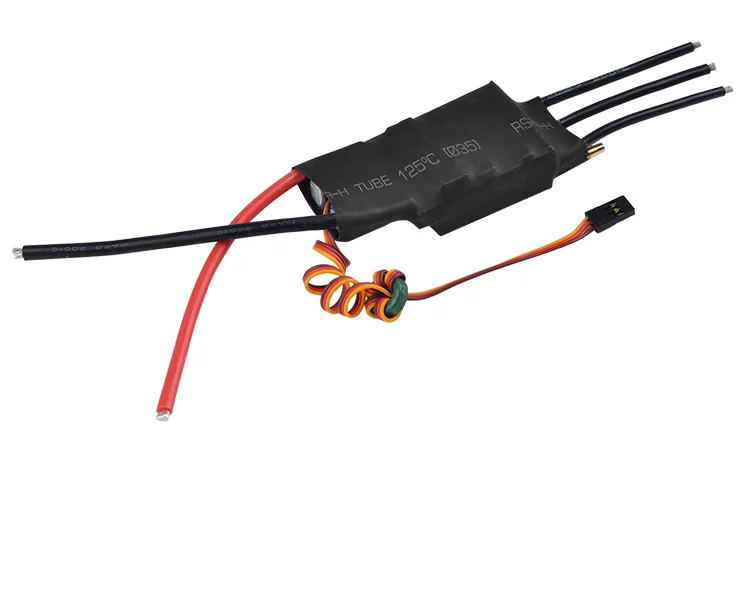

Mitoot 60A 80A 100A 125A 200A Brushless Water Cooling Electric Speed Controller ESC with 5V/3A BEC for RC Boat Model
$17.99 – $36.99
SPECIFICATIONS
Brand Name: Mitoot
Hign-concerned Chemical: None
Origin: Mainland China
For Vehicle Type: boAts
Material: Metal
Model Number: 100A
Upgrade Parts/Accessories: Lithium Battery
Quantity: 1 pcs
Remote Control Peripherals/Devices: ESC
Tool Supplies: Assembled class
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Use: Vehicles & Remote Control Toys
50A
support 4S battery with 3A UBEC output with water-cooled one-way
without back Dimensions: 53 * 40 * 16mm Weight 58 grams (including wire
and water-cooled block)
70A support 6S battery with 5A UBEC
output with water cooled one-way without back Dimensions: 75 * 41 * 18mm
Weight 95 grams (including wire and water-cooled block)
125A
support 6S battery with 5A UBEC output with water-cooled one-way without
back Dimensions: 75 * 41 * 23mm Weight 120 grams (including wire and
water-cooled block)
200A support 6S battery with 5A UBEC output
with water cooled one-way without back Dimensions: 65 * 41 * 26mm Weight
140 grams (including wire and water-cooled block)
Marine two-way brushless ESC instructions
Basic Features:
1. Voltage range 4.8V-29.75V
2. 4 — 12NIMH 2-7LIPO
3. Featured high-performance FET
4. Single LIPO protection voltage 3.0V
5. Continuous working current A / 50A / 80A / 100A / 200A instant 200A / 320A / 500A / 650A
6. PWM frequency 8K / 16K / 32K
7. Supports brushless sensorless motors for the vast majority of models with 14-pole motor speeds up to     30,000 RPM.
8.Waterproof design
Additional features:
Brake strength optional
Support reversing function (no reversing / 25% power reversing / 50% power reversing optional)
Support Banpo start
Throttle position error prohibited start
Automatically learn the throttle trip
The error signal turns off the power
Receiver no signal alarm, and turn off the output.
Discover more from Tamfis Nigeria Lmited
Subscribe to get the latest posts sent to your email.
Color |

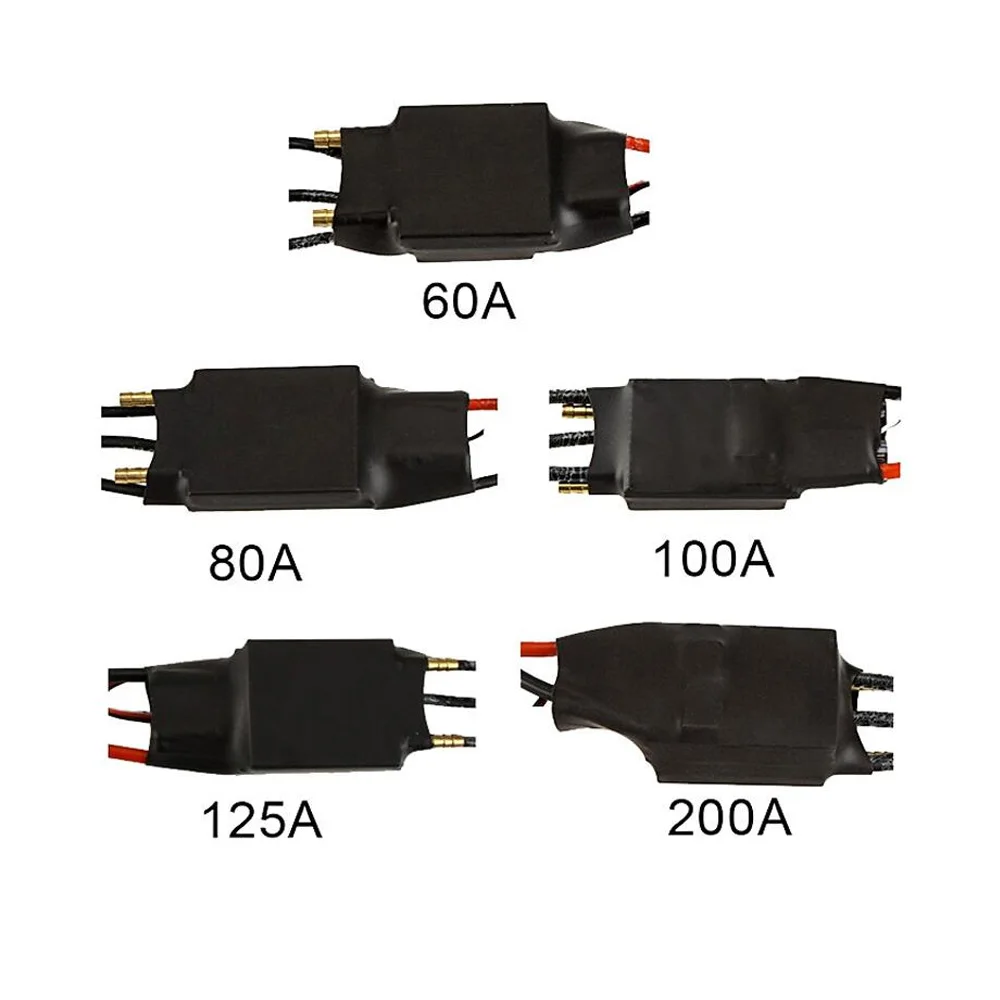

60A ,125A ,200A ,80A ,100A |
---|
