SPECIFICATIONS

Brand Name: HAOYUNMA

Hign-concerned Chemical: None

Origin: Mainland China

Power Source: AC

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1 Year

Condition: New

Place of Origin: Shandong, China

Weight: 50

Warranty: 1 Year

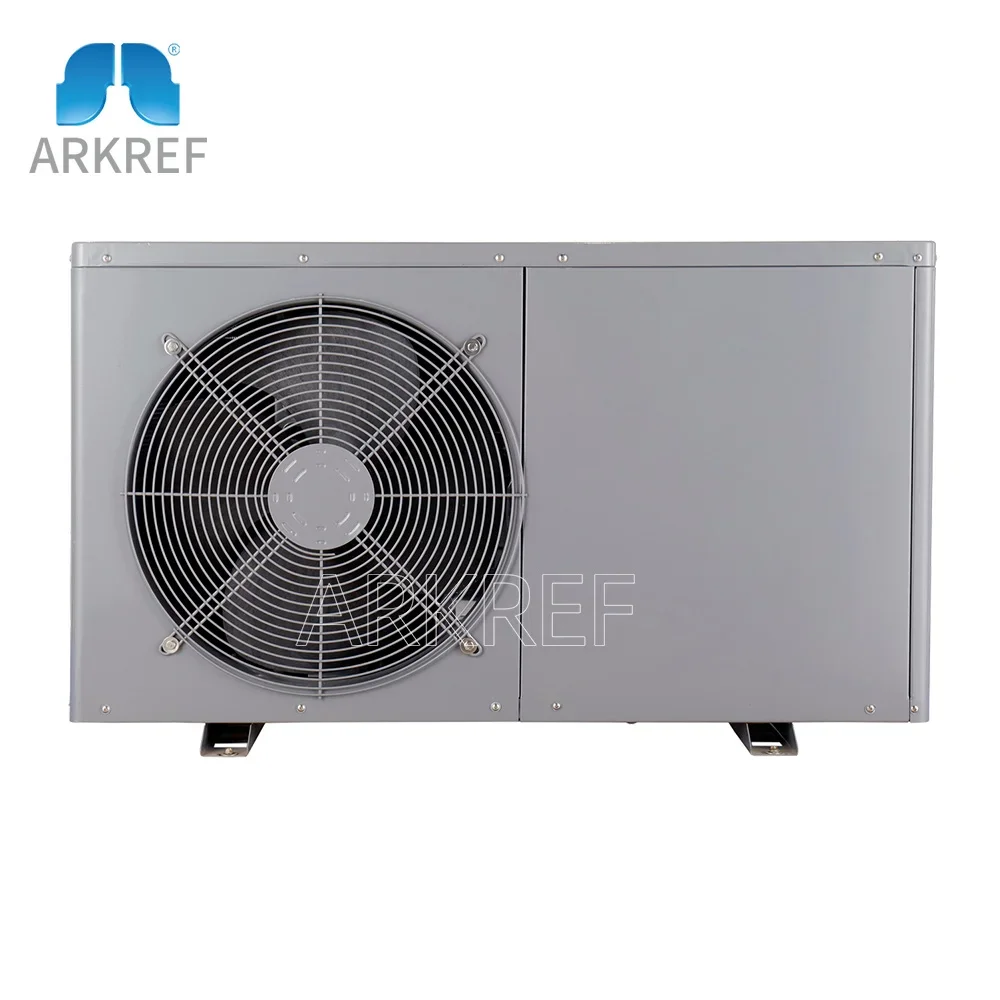

Product name: Water cycle air source heat pump water heater

Power Type V/Ph/Hz: 220~240 / 1 / 50

Refrigerant: R410A/R417A

Air Flow Direction: Horizotal

Evaporator: Inner threaded pipe + hydrophilic aluminum foil

Heat Exchanger: High efficient heat exchanger

Cycle Water Pump: Stainless Steel Water Pump

Outlet Water Temperature ℃: 55℃-60 ℃

Water Pressure Loss Kpa: 35

In/Out Water Connection: DN20

Residential Heat Pump Water Heater (Split Water Cycle)
Model			SZ-BKR01	SZ-BKR015	SZ-BKR02	SZ-BKR025
Rated Heating Capacity	Kw	3.5	5.5	7.5	8.5
Rated Input Power	W	0.8	1.25	1.7	1.95
COP	w/w	4.38	4.40	4.41	4.36
Power Type	V/Ph/Hz	220~240 / 1 / 50
Refrigerant	/	R410A/R417A
Air Flow Direction	/	Horizotal
Evaporator	/	Inner threaded pipe + hydrophilic aluminum foil
Heat Exchanger	/	High efficient heat exchanger
Cycle Water Pump	/	Stainless Steel Water Pump
Outlet Water Temperature	℃	55-60 ℃
Fan Input Power	W	20	25	30	50
Water Pressure Loss	Kpa	35
Water Yield	L	75	118	161	182
Noise	dB(A)	43	47	52	55
In/Out Water Connection		DN20/DN25
Machine Size(L/W/H)	mm	930/280/550	930/280/550	930/280/550	950/320/580
Packing Size(L/W/H)	mm	960/380/660	960/380/660	960/380/660	1000/400/695
Net Weight	Kg	40	52	56	68
Gross Weight	Kg	43	56	60	72
