SPECIFICATIONS

Brand Name: LanYuXuan

Origin: Mainland China

Hign-concerned Chemical: None

DIY Supplies: ELECTRICAL

Place of Origin: Guangdong, China

Brand Name: QYTeco

Model Number: QY6565-E016

Warranty: 1 Year

Special Features: NIGHT VISION, One-way Audio, Waterproof / Weatherproof

Network: AHD

Function: Waterproof / Weatherproof, Wide Angle, One-way Audio, Built-in Mic

Video Compression Format: H.264

Data Storage Options: Micro SD card

Application: Indoor, Outdoor

Customized support: Online technical support, Customized logo, OEM, ODM, Software reengine

Cable Diameter: 4.8mm

Cable Length: 30m or customized

Camera diameter: 12.8

Screen Size: 5 inch

Dear friends, welcome to our store. If you need other models of this product, please contact us, WhatsApp +86 18817005262 Email: [email protected], If you need to buy Chinese products recently, you can ask me first, I can find any product for you and reply you as soon as possible to offer you a plan and reasonable price. Have a nice life:)

30M Push Rod Cable Sewerage Pipe Inspection Camera Tool

Products Description

This pipe inspection camera system is designed as a real-time inspection camera and to unveil the internal objects and/or
structures with the illumination of the highlight LEDs, it is specially designed for pipeline, sewer, drain, duct, chimney,
plumbing, building, swimming pool, milk pipes, water mains, cable pipes, central air conditioning, pipes ventilation systems and other plumbing related sites, and many more where a pipe inspection camera system is required.
This system is suitable for pipes with inner diameter at 15mm-200mm (1/2”-4”). Ability to go through 90°bends in pipe with inner diameter at 50mm(for 21mm camera with 5.3mm push rod), 32mm(for 12.8mm camera with 4.8mm push rod).

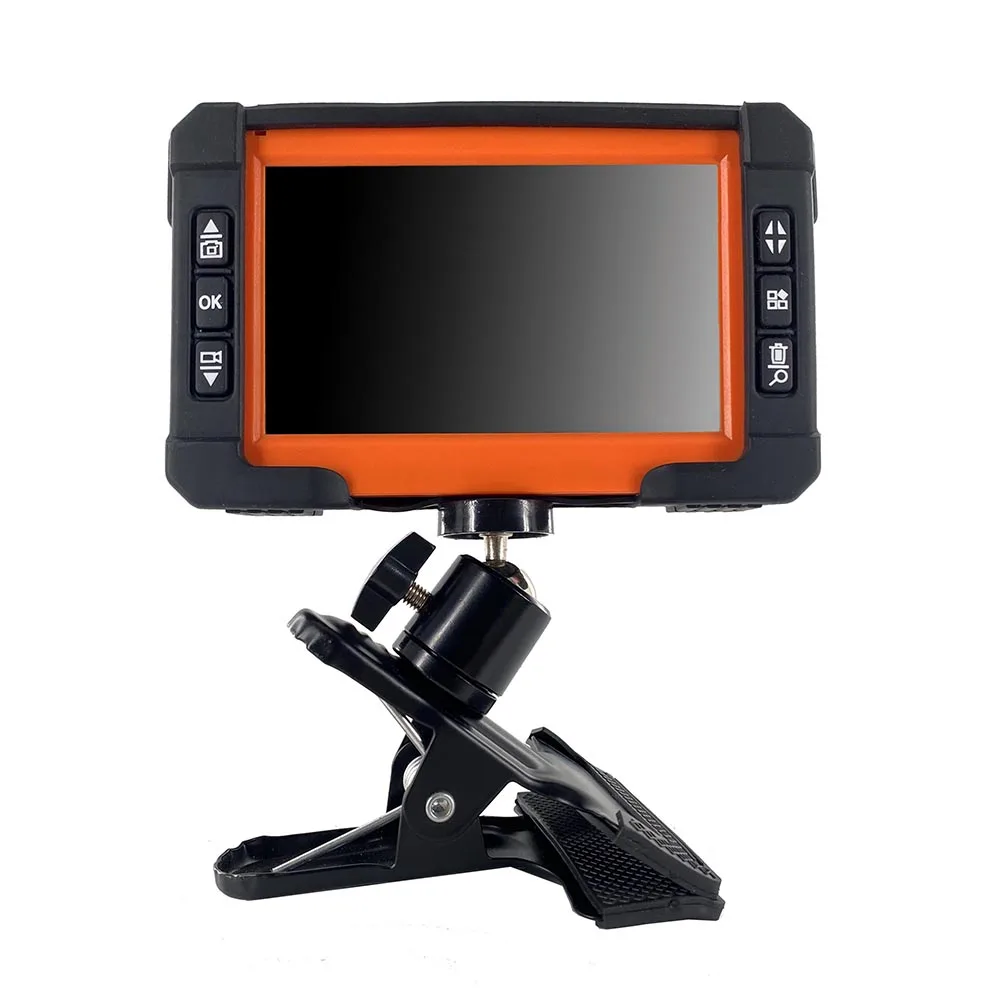

5 Inch Control Monitor

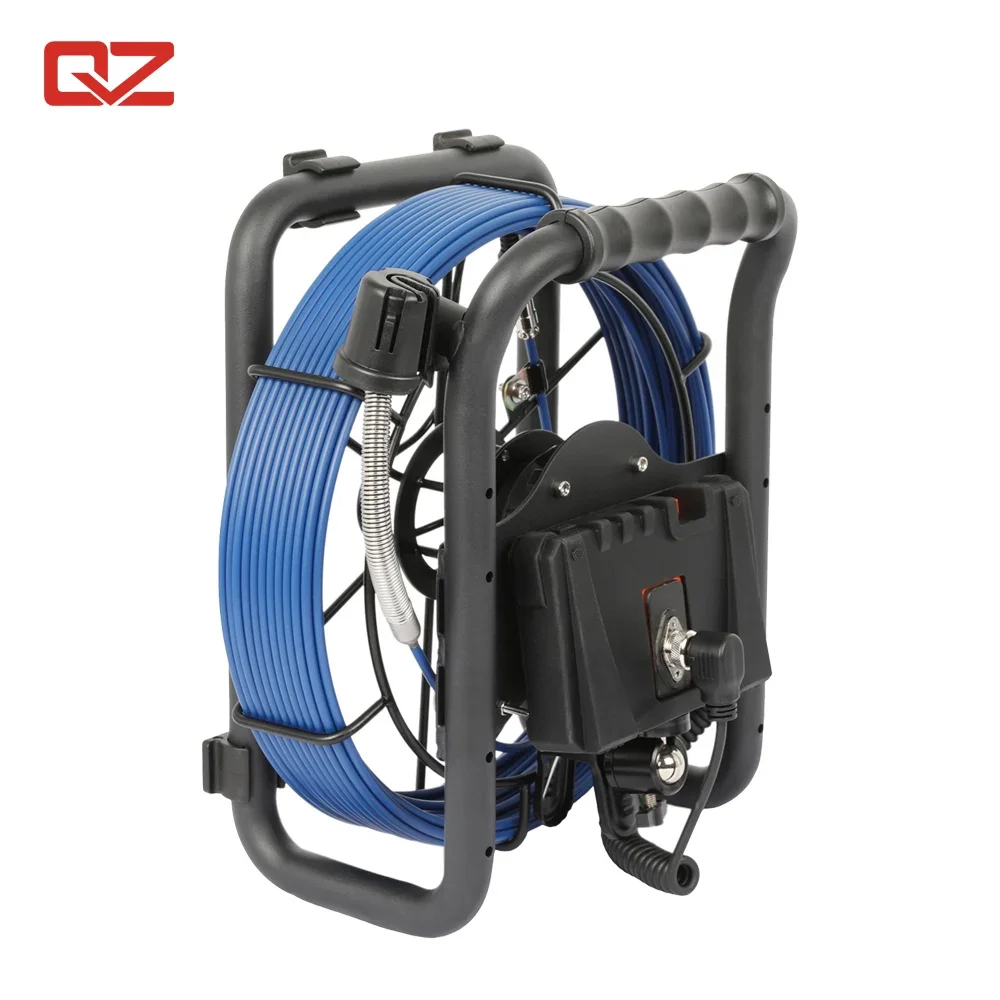

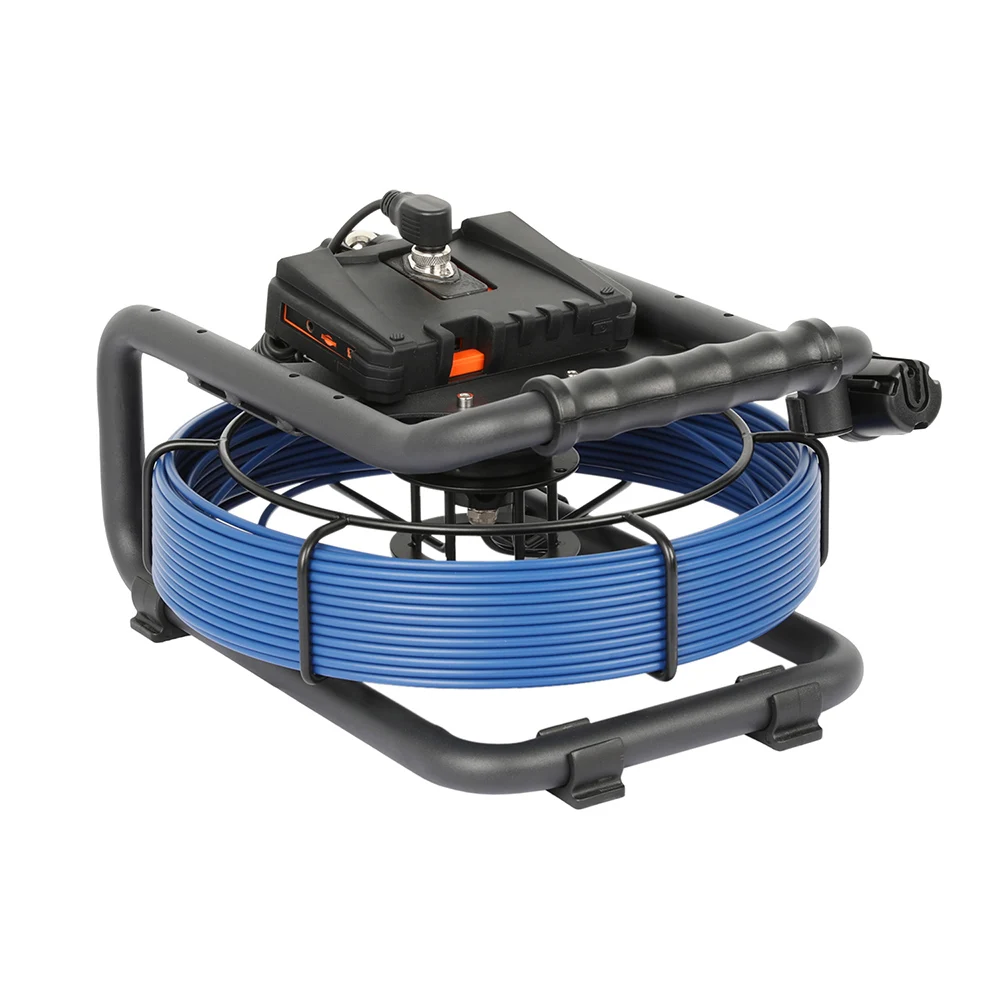

Cable Reel With Metal Frame

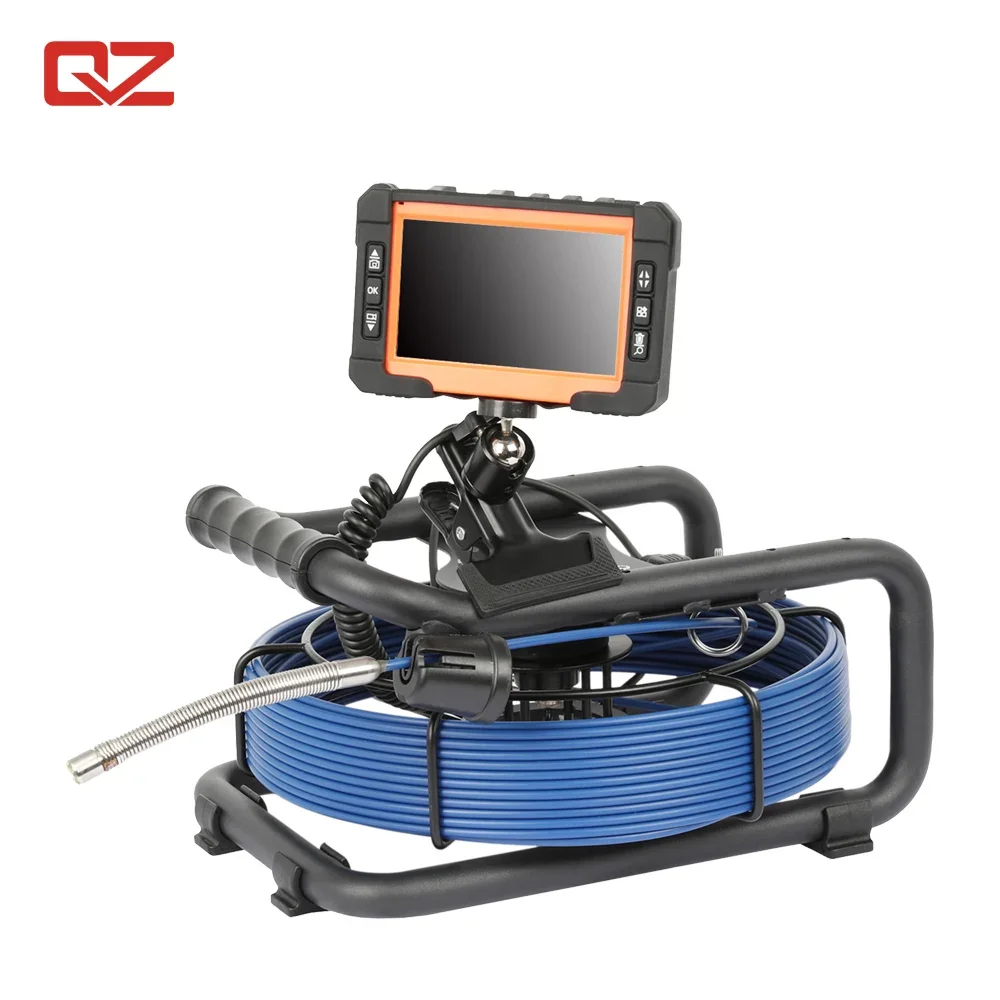

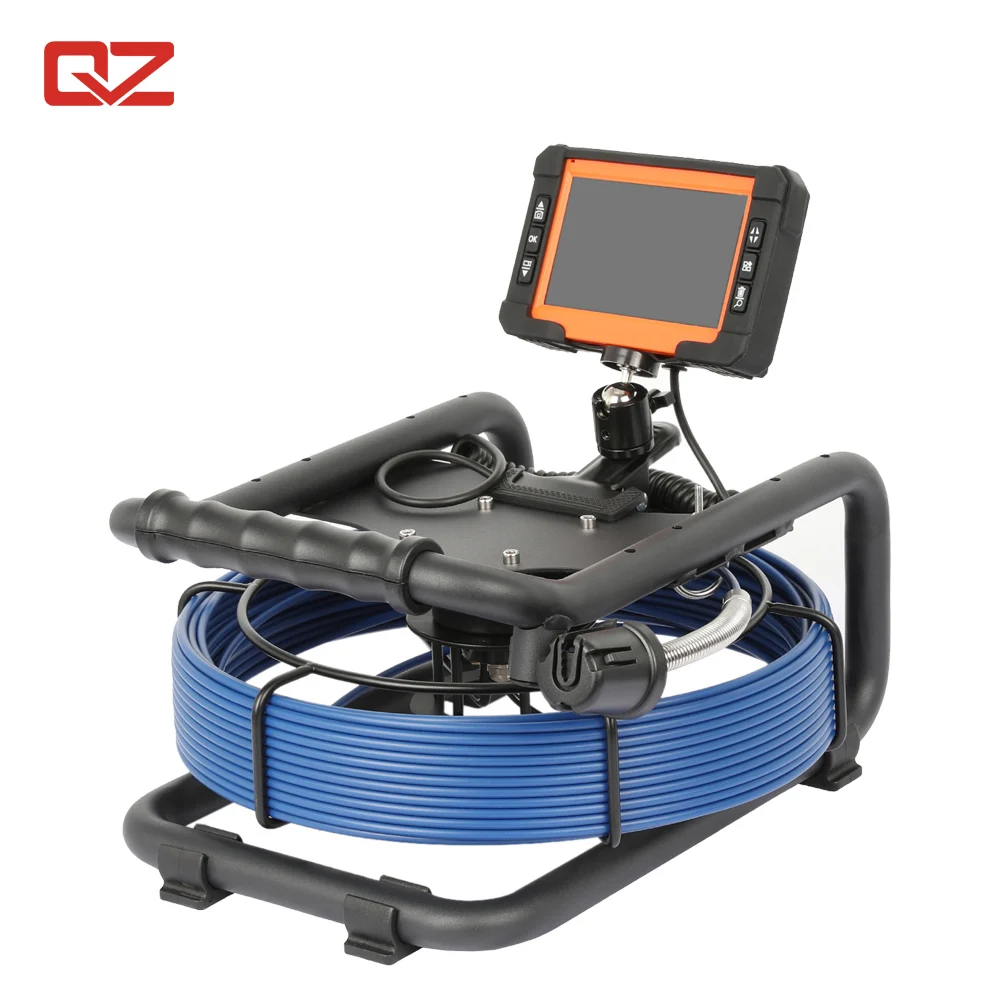

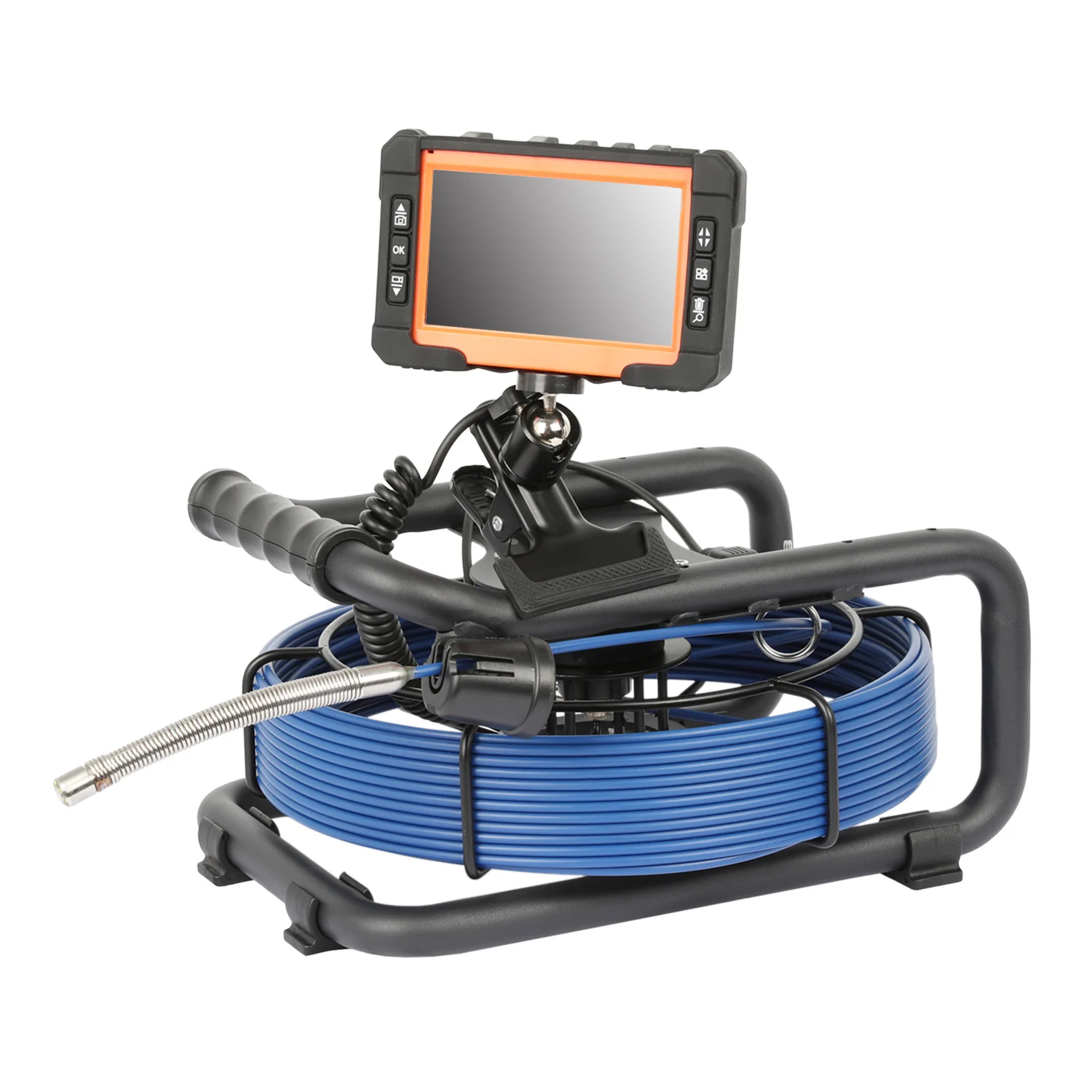

Combine Together

Features:

*
Compact and Portable design for easy carry and storage;

* Detachable and collapsible monitor for adapt to various work angles;

* Camera head with sapphire glass lens cover and 304 stainless steel housing allow the camera to withstand repeated hits in various pipes;

* Rotatable cable reel mounted in metal frame for convenient operation;

* Waterproof level: IP67 (camera tube only);

* 5” LCD color monitor to real-time inspecting and easy to take pictures or record videos;

* On-Screen date & time stamp;

* Support external storage TF Card, max storage up to 32GB;

* System supports two kinds of cameras:φ12.8mm(with 4.8mm push rod) and φ21mm(with 5.3mm or 12.8mm push rod)

are available;

* Push rod fiberglass cable length 10/20/30m for options;

* U-type metal frame make the cable reel easy to clean;

* 512Hz sonde could be optional for both camera heads.

Specifications

Item			21mm camera	12.8mm camera
General	Operating Temperature	-10~50°C/+14~+122°F
		Operating Humidity	30%RH~90%RH
		Storage Temperature	-20~60°C/+4~+140°F
		Power adapter	Input:110VAC~240V AC, Output:12V DC 2A
		Power Supply	DC 12 input
		Current Consume	800mA Max
		Battery Capacity	3800mAh Li-ion Battery
		A Single Charge Work Time	3 Hours
		Charge Time	5Hours
		Waterproof	IP66 ( Only the camera head insctalled and the metal frame with cable reel are waterprood )
		MEA S.	37*35*22CM
		Weight	Approx 5Kg (slight different from different length of cable)		QY6566:Approx 8.5Kg; QY6688:Approx 12Kg (slight different from different length of cable)
Camera	Sensor	1/ 3″ CMOS	1/ 4″ CMOS
		TV-Line	700TVL	600TVL
		View Angle	90°	60°
		Focus Distance	15cm (approx)	5cm (approx)
		Depth Of Field	100cm(approx)	100cm(approx)
		Camera Size	Φ21mm×45mm (Main body)	Φ12.8mm×12mm (Main body)
		Camera Length	165mm	135mm
		Front Lens	Sapphire
		Shell Material	304#Stainless Steel
		Lighting	Built-in 12×LED (White)	Built-in 6×LED (White)
		LED Driver	Built-in Dimmer(Pulley button)
		Water-resistant	20m water (Camera fix on Cable)
5” Monitor	Screen	5inch high-definition color LCD
		Resolution	800X3(RGB)X480
		Mirror and Flip	Normal, 180° flip, mirror, mirror & 180° flip
		Video Resolution	1020*508	752*582
		Video Encoding	H.264	H.264
		Photograph	1020*508	752*582
		Out Put	TV output
		External Memory	Support MAX. 32G TFCard
		Play Back	Photo and Video
		Language	English, Deutsch, Français, Nerderlands, Simplified Chinese, traditional Chinese, Japanese, Español, Pусский
		Image Format	.JPG
		Video Format	AVI.
		Size	157*100*36mm
		Color	Black+Orange
Cable	Cable Diameter	Φ5.3mm	Φ5.3mm or Φ4.8mm
		Cable Color	Φ5.3mm in red, Φ4.8mm in blue
		Cable Length	5/10/20/ 30meter (Selectable)

Application

Industrial inspection camera applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors

Packaging & Shipping

Packing List

Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.

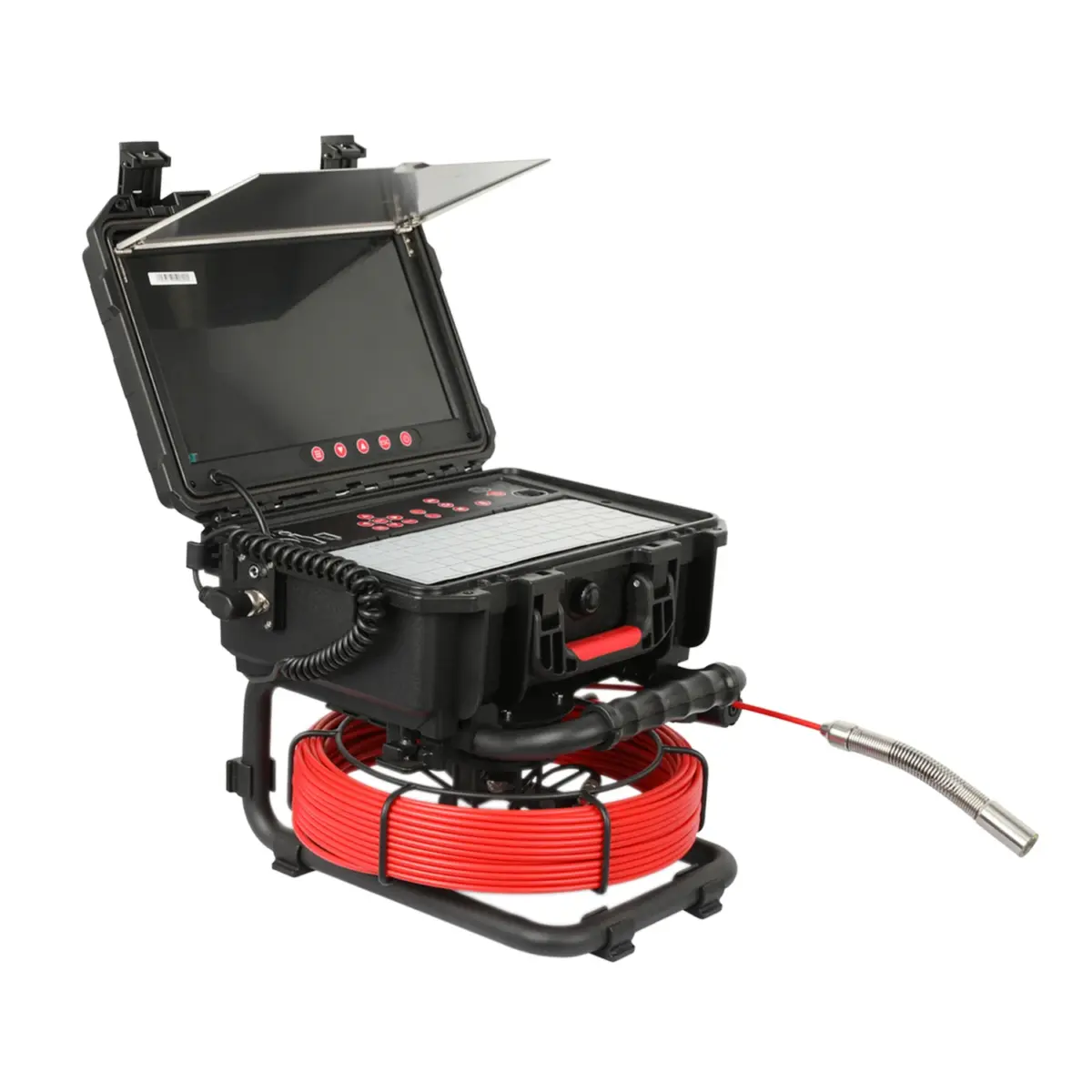

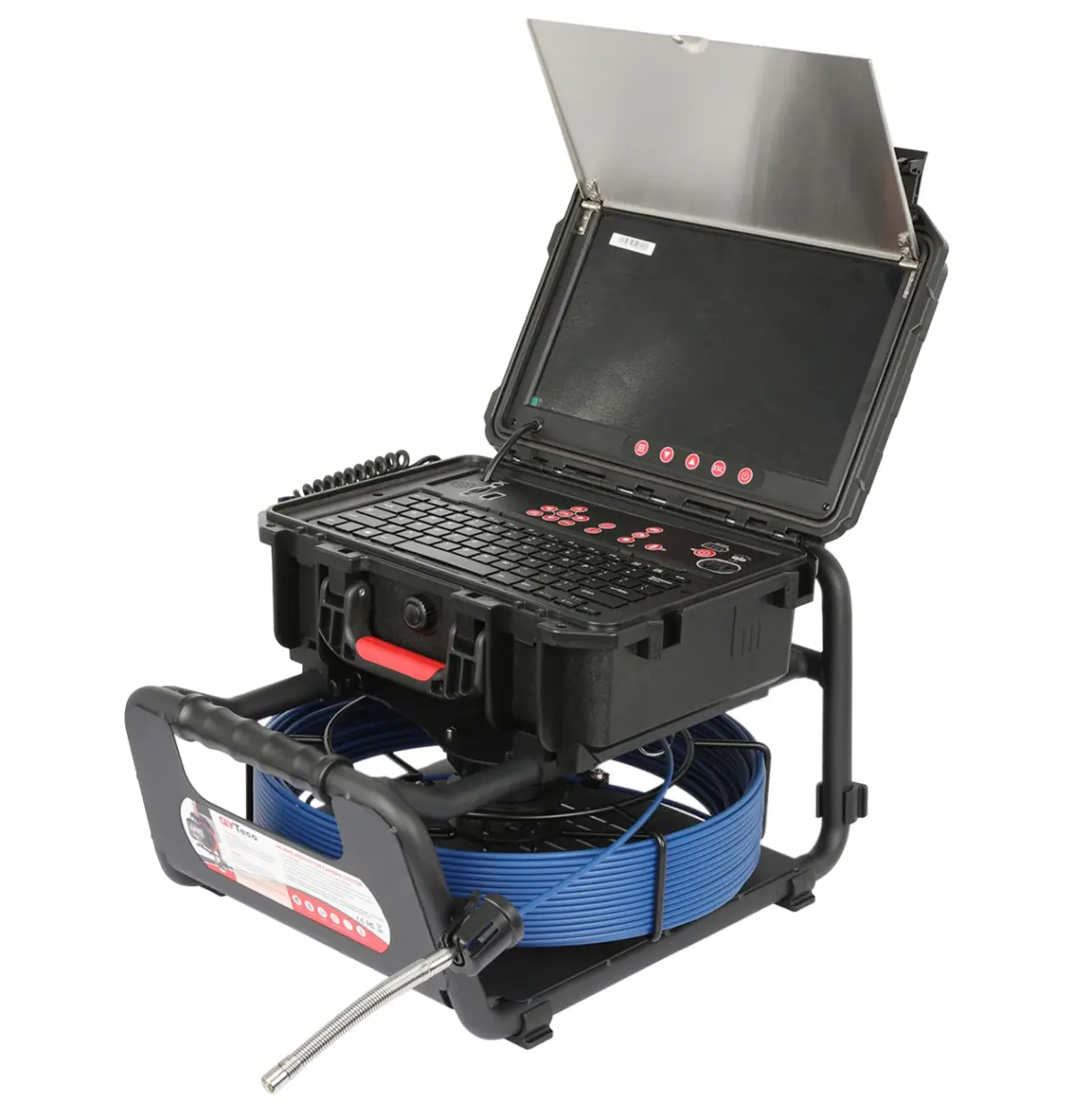

Similar Products
